The right data logger for your needs
ASPION G-Log transport data loggers
Digital transport monitoring for shock and climate
ASPION L-Track Asset Tracking
Multisensor data logger for 360° live tracking

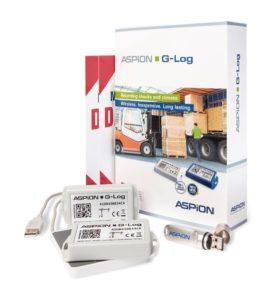

ASPION G-Log data loggers for shock and climate
ASPION G-Log transport data loggers are your proven companions for recording shocks and climate data during transportation. Shocks are logged on all three axes with directional information - even with a detailed history at millisecond level. The multi-award-winning complete solution consisting of data loggers, PC software and smartphone apps creates transparency in the supply chain and provides recognized proof to service providers and insurance companies in the event of damage - at a market-leading price-performance ratio.
Digital transport monitoring with ASPION G-Log
Smart recording of shock and climate data
Sensors
3-axis recording of shocks with up to ± 24 g per axis
9 Shock events with detailed history
Shock / vibration test in accordance with transport standard IEC 60721-3-2
Temperature sensor
Humidity sensor
Storage
Number of events
286
950
950
Communication
Wireless data transmission with NFC
Wireless data transmission with BLE (Bluetooth Low Energy)
Activation via app (only with Premium service)
Sustainability
ABS housing, waterproof and/or dustproof
Protection class IP50
Protection class IP50
Protection class IP65/67
Operating time ≤ 1.5 years, battery CR2032, suitable for air freight
changeable by the
manufacturer
User changeable
User changeable
ASPION L-Track multisensor data logger for 360° asset tracking
ASPION L-Track monitors your transports worldwide in real time and creates transparency and security for your supply chain. In addition to the entire transport process in a GDPR-compliant map view, you have complete transparency about the current location and condition of your goods - at any time and anywhere in the world. Shocks, climate data and other relevant environmental conditions are reliably logged and visualized via the multifunctional ASPION cloud platform. Live data and alerts allow you to actively intervene in your supply chain and control processes. The end-to-end solution "Made and Hosted in Germany" can be used universally and repeatedly over many years.
Sensors
3-axis recording of shocks with up to ± 24 g per axis
All shock events with detailed history
Shock / vibration test in accordance with transport standard IEC 60721-3-2
Temperature sensor
Humidity sensor
Opening detection
Light sensor
Tilt
Pressure sensor
Motion sensor
Storage
Ring memory for 50,000 measured values
Communication
Cellular location determination and worldwide data transmission from over 140 countries
Data transmission via mobile radio with LTE-M and GSM (2G) as fallback
Multifunctional, powerful IoT cloud platform
Wireless connectivity with BLE (Bluetooth Low Energy)
Sustainability
Universally reusable over many years.
AA 1.5 V alkaline batteries, user-replaceable (lithium also possible)
Long running times (approx. 3 years with transmission interval of 8 hours)
ABS housing with protection class IP 67
The ASPION Cloud provides round-the-clock access to live data from all devices worldwide. The tracking history is visualized via a GDPR-compliant map view. Shipments can be clearly grouped and organized to capture all relevant information at a glance. Thresholds and geofences can be freely defined with extensive alerting functions. The powerful and secure IoT platform "Hosted in Germany", based on Deutsche Telekom's Cloud of Things, offers multi-layered administration functions with unlimited user management.
Introductory offer ASPION L-Track
Package consisting of
1 device ASPION L-Track multisensor data logger
with all available device sensors
SIM card for worldwide live tracking
Access to the ASPION Cloud
incl. 12 months runtime from activation
Including onboarding package for new customers
(setup of ASPION cloud access, provision of devices and basic configuration, user training and advice for an easy start)
Total price 549 €
Optional accessories available
Expand your ASPION L-Track with a practical neodymium magnet set for easy mounting on metallic surfaces. The strong magnets are mounted on the production side and allow flexible and reliable positioning on your transported goods.
